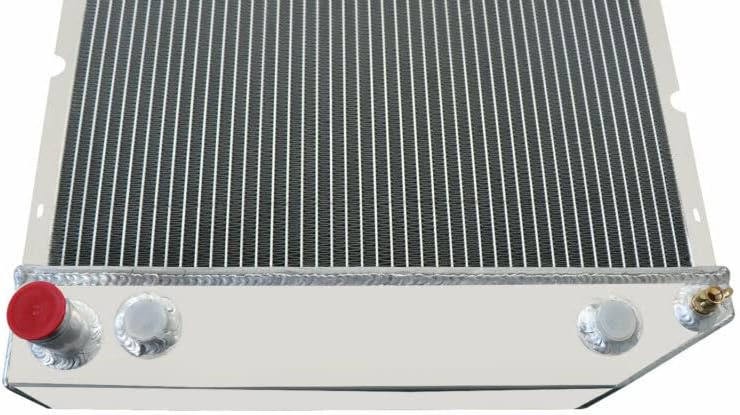

3 Row Aluminum Radiator for 2004-2016 Chevy Express GMC Savana 2500 3500 4500 4.8L 6.0L Crossflow Radiators 04 05 06 07 08 09 10 11 12 13 14 15 16

Fitment For 2004-2016 Chevy Express 2500/Express 3500 4.8L 6.0L V8For 2009-2016 Chevy Express 4500 6.0L V8For 2004-2016 GMC Savana 2500/Savana 3500 4.8L 6.0L V8For 2009-2016 GMC Savana 4500 6.0L V8 Radiator Details Row Count: 3 Row Upper Inlet: 1.31in located on driver side Lower Outlet: 1.56in located on passenger side Surface Finish: Aircraft Grade Raw Aluminum OEM style brass petcock drain CNC machined filler neck and cap Part Number Manufacturer Part Number：CU2791, GM3010502, Q2791, RAD2791, RK1112

• 3 Row Core AA5052 Aluminum Radiator for 04-16 Chevy Express GMC Savana 2500/3500 4.8L/6.0L, for 09-16 Chevrolet Express GMC Savana 4500 6.0L, 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016
• Core Size: 33.98"H x 17.24"W x 1.73"T; Overall Size: 40.55"L x23.03"W x5.51"H; Inlet/Outlet: 1.50"/1.75"; Transmission oilcooler: φ26*292*5/8-18UNF(Z)
• High Performance. Full AA5052 Aircraft Aluminum craftsmanship radiator & exclusive tube design that dramatically increases cooling efficiency by up to 30%~45%, strong and durable, 100% welded by TIG, No Epoxy. 100% Leak Tested
• Easy to Install. Meticulously built to superior OE standards for a precise fit, direct bolt-on replacement. No Drilling or Modifications Needed for Installation
• Crafted by our professional team using the highest-grade materials for exceptional longevity.
