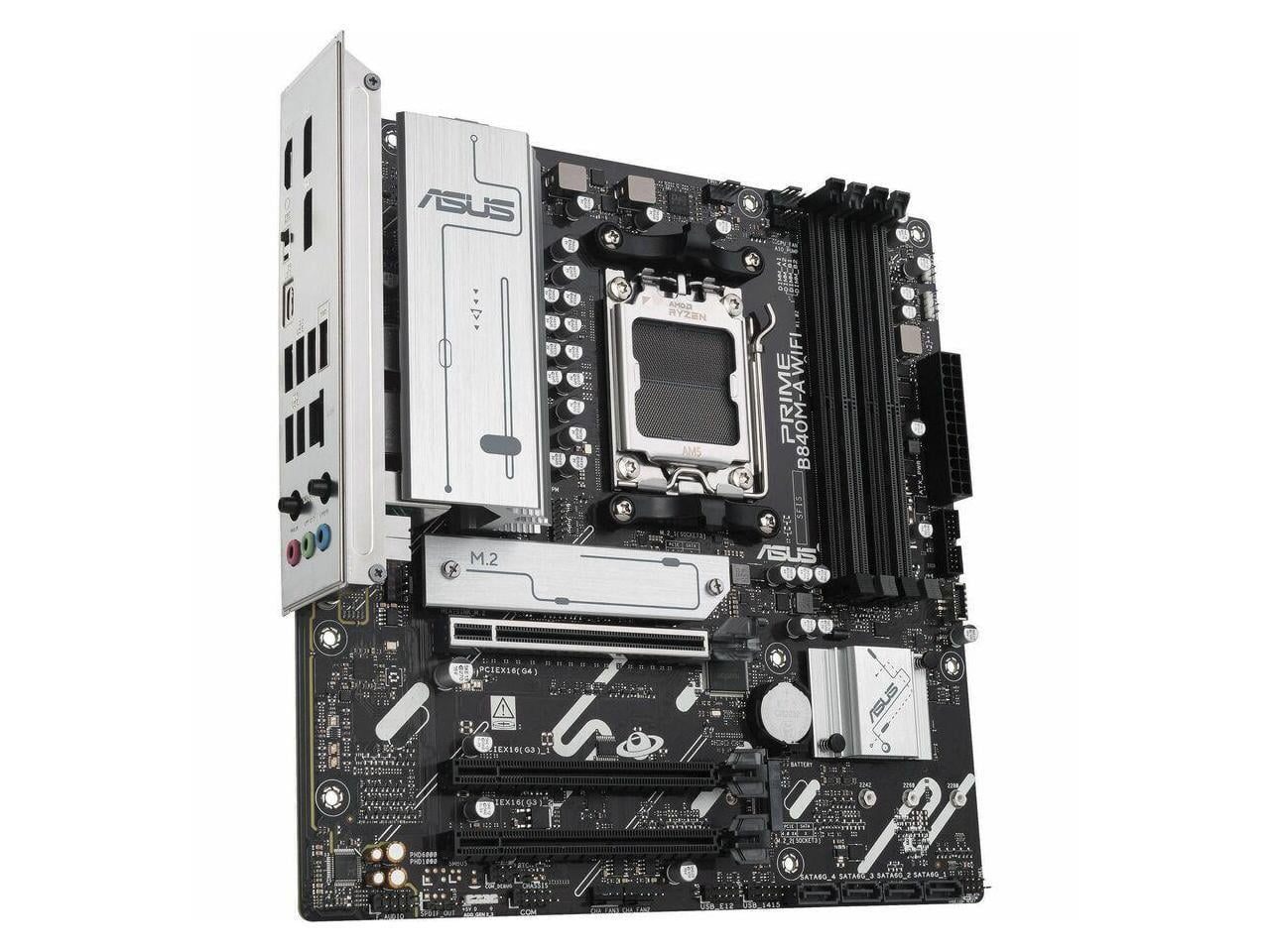

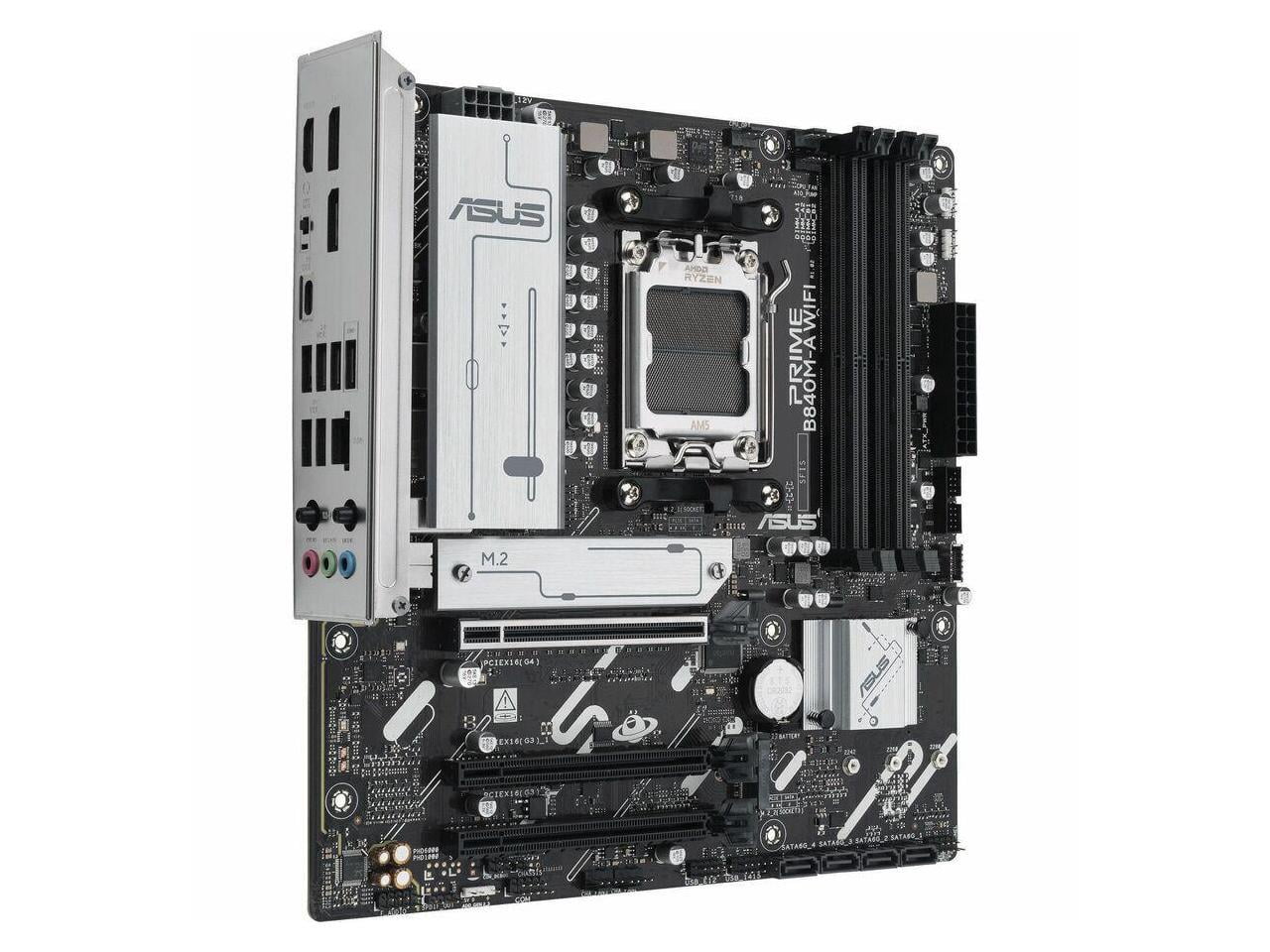

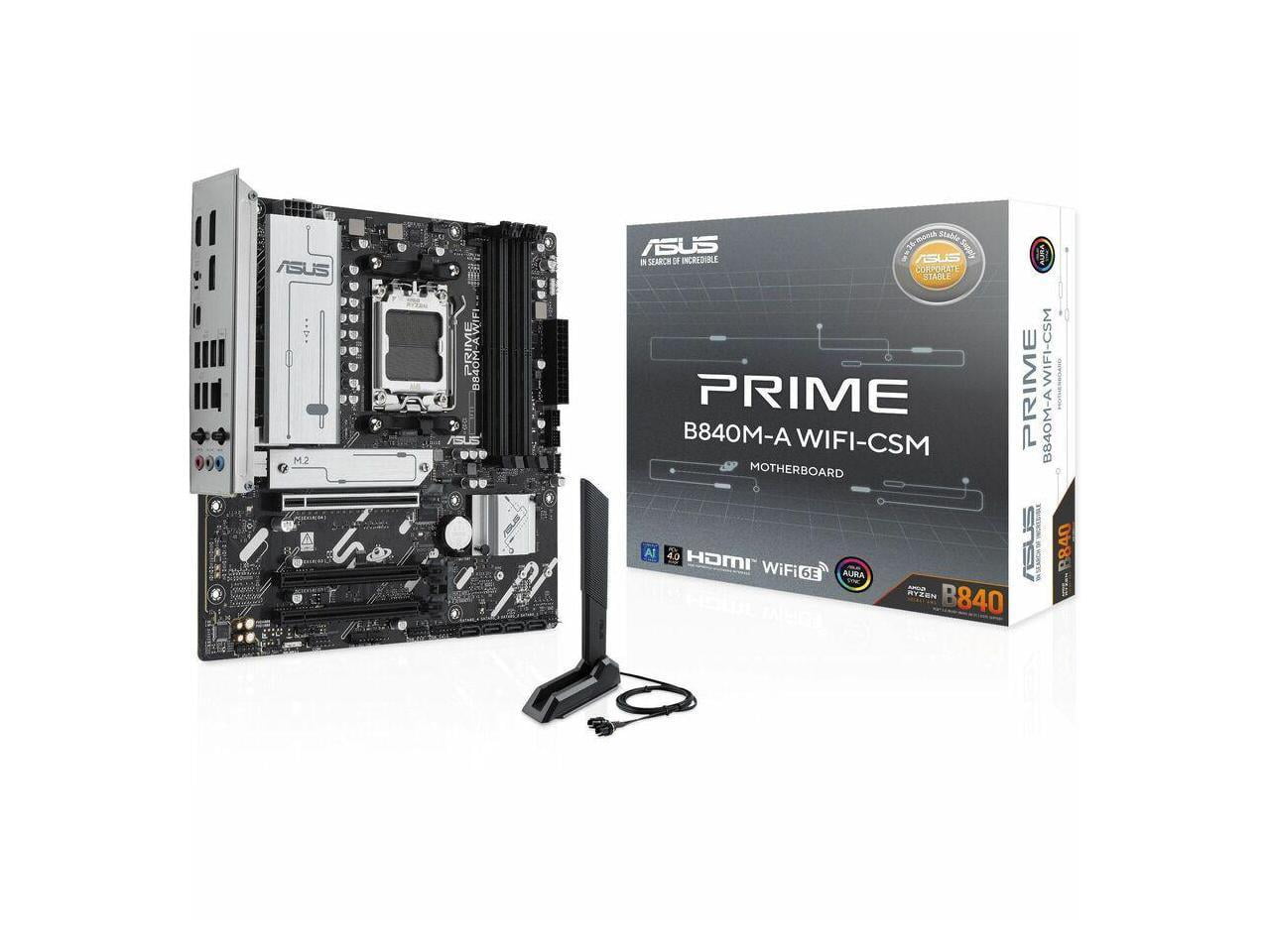

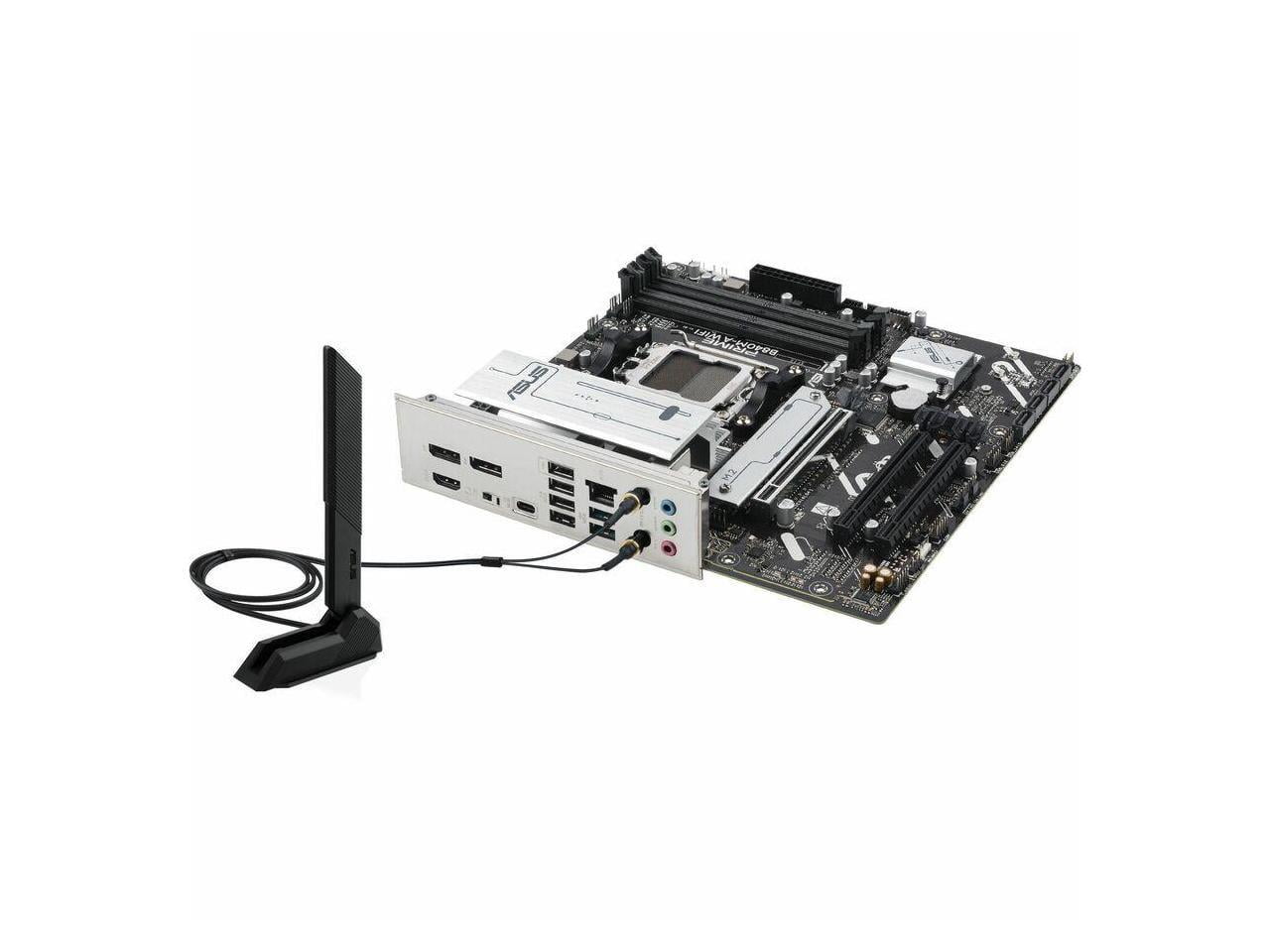

Asus Prime B840M-A WIFI-CSM Gaming Desktop Motherboard - AMD B840 Chipset - Socket AM5 - Micro ATX (primeb840m-awifi-csm)

<b><u>Technical Information</u><br></b><br><b>AI-powered:</b> Yes<br><br><b><u>Processor &amp; Chipset</u><br></b><br><b>Chipset Manufacturer:</b> AMD<br><b>Chipset Model:</b> B840<br><b>Total Processor Supported:</b> 1<br><b>Processor Socket:</b> Socket AM5<br><b>Processor Supported:</b> Ryzen 7, Ryzen 9<br><br><b><u>Memory</u><br></b><br><b>Number of Memory Slots:</b> 4<br><b>Memory Form Factor:</b> DIMM, UDIMM<br><b>Maximum Memory Supported:</b> 192 GB<br><b>Memory Technology:</b> DDR5 SDRAM<br><b>Memory Speed Supported:</b> 7600 MHz<br><b>Error Checking:</b> ECC<br><br><b><u>I/O Controller</u><br></b><br><b>Controller Type:</b> Serial ATA/600<br><b>RAID Supported:</b> Yes<br><b>RAID Levels:</b> 0, 1, 5, 10<br><br><b><u>Video</u><br></b><br><b>Onboard Video:</b> CPU Dependent Video<br><br><b><u>Audio</u><br></b><br><b>Audio Channels:</b> 7.1<br><br><b><u>Network &amp; Communication</u><br></b><br><b>Bluetooth:</b> Yes<br><b>Bluetooth Standard:</b> Bluetooth 5.3<br><b>Gigabit Ethernet:</b> Yes<br><b>2.5Gigabit Ethernet:</b> Yes<br><b>Wireless LAN:</b> Yes<br><b>Wireless LAN Standard:</b> IEEE 802.11ax<br><br><b><u>I/O Expansions</u><br></b><br><b>Total Number of Expansion Slots:</b> 4<br><b>PCI Express Standard:</b> PCI Express 4.0, PCI Express 3.0<br><b>Total Number of PCI Express Slots:</b> 4<br><b>Number of PCI Express x16 Slots:</b> 4<br><br><b><u>Interfaces/Ports</u><br></b><br><b>Total Number of USB Ports:</b> 7<br><b>S/PDIF:</b> Yes<br><b>HDMI:</b> Yes<br><b>HDMI Version:</b> 2.1<br><b>DisplayPort:</b> Yes<br><b>Number of Network (RJ-45) Ports:</b> 1<br><br><b><u>Onboard Interfaces</u><br></b><br><b>Number of SATA Interfaces:</b> 4<br><b>Number of M.2 Interfaces:</b> 3<br><b>Total Number of Onboard USB Ports:</b> 7<br><b>Number of Onboard USB 2.0 Ports:</b> 4<br><br><b><u>Physical Characteristics</u><br></b><br><b>Form Factor:</b> Micro ATX<br><b>Width:</b> 9.6"<br><b>Depth:</b> 9.6"<br><br><b><u>Miscellaneous</u><br></b><br><b>Country of Origin:</b> China<br><b>Environmental Compliance:</b> Restriction of Hazardous Substances (RoHS), China Restriction of Hazardous Substances (China RoHS), Taiwan Restriction of Hazardous Substances (Taiwan RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)<br><br><b><u>Warranty</u><br></b><br><b>Limited Warranty:</b> 3 Year

Asus Prime B840M-A WIFI-CSM Gaming Desktop Motherboard - AMD B840 Chipset - Socket AM5 - Micro ATX - Ryzen 7, Ryzen 8, Ryzen 9 Processor Supported - 192 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11ax - HDMI - DisplayPort - 4 x SATA Interfaces

Cpu socket type	Socket AM5
Motherboard form factor	Micro ATX
Memory configuration	4 x Memory Slots
Proc. brand	Asus
Max RAM	192 GB
Inputs/Outputs	Outputs - S/PDIF, HDMI, DisplayPort
Brand	ASUS
In/Out type	Wireless
Number of ports	8
Input/output quantity	16
Model name	B840M-A WIFI-CSM
Height	3 in
