Questions and Answers from the Illustration Study
Questions

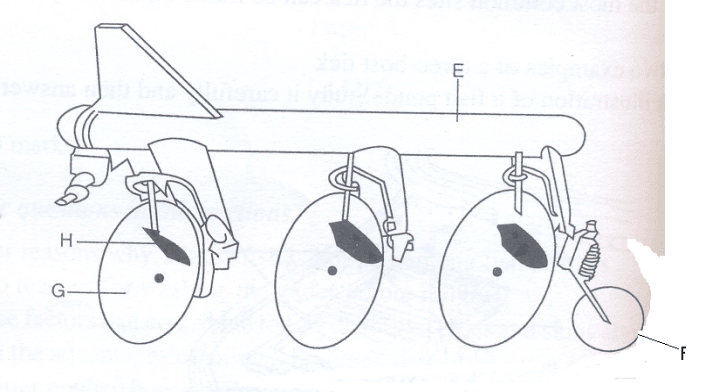

- Identify the implement illustrated above. (1 mark)
- Name the parts labeled E, F, G, and H. (2 marks)
- E
- F
- G
- H
- State three ways in which the depth of ploughing can be increased when using the implement above. (3 marks)
Answers
- Disc plough. (1 mark)
- E – Beam
- F – Depth/furrow wheel
- G – Disk blade
- H – Scraper (2 marks)
- Adjusting by raising the depth wheel.
- Adjusting the angle of the discs.
- Lengthening the top link.
- Adding weight to the plough beam. (3 marks)
